| Machineno | 1000-60130 |

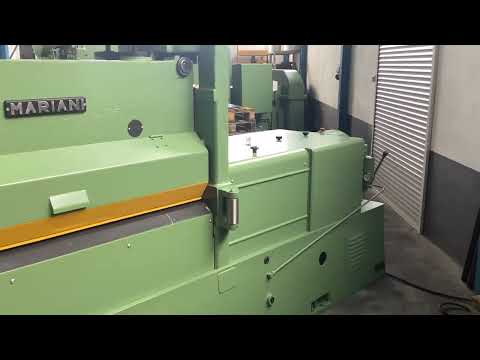

| Machine type | Roller leveller |
| Make | MARIANI |
| Type | |
| Build year | 2023 CHECK |
| Control | conventional |
| Storage location | D-74889 Sinsheim |
| Origin | Germany |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| material width | 1450 mm |
| material thickness | 3,00 mm |
| no. of straightening rolls | 21 |
| between stands ca. | 1500 mm |
| thickness min. approx. | 0,40 mm |
| diam. of the rolls ca. | 40 mm |
| straight. speed ca. | 10 m/ min |
| barrel length ca. | 1500 mm |
| total power requirement | 12 kW |
| weight of the machine ca. | 7,00 t |
| dimensions of the machine ca. | 3,80 x 1,10 x 2,10 m |
|
- Wall distance vertically 12 mm - lower support 7-fold with support rollers - 4-fold upper support with support rollers - Bombing below - Reversible - Three-phase motor - Central grease lubrication of the straightening rollers bearing strip - Circulating oil lubrication of gears and cardan shafts The leveling machine is inspected by the specialist team. Test with material is possible by appointment gladly possible. |
