| Machineno | 1000-LT2024 |

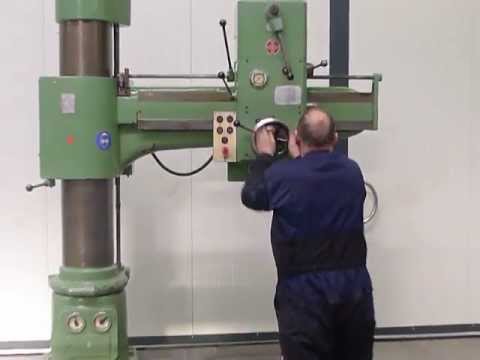

| Machine type | Radial Drilling Machine |
| Make | GUILLIN / CHINA |
| Type | Z 3032 |
| Build year | 1993, ungeb. |
| Control | conventional |
| Storage location | Werne / Germany |
| Origin | 0 |
| Delivery time | immediate |
| Freight basis | immediate |
| Price | on request |
| Bohrleistung in Stahl (-Ø | 32 mm |
| throat | 900 mm |
| workpiece height max. | 1000 mm |
| swival range +/- | 360 ° |
| height adjustment | 550 mm |
| base plate surface area | 1100 x 600 mm |
| Bohrspindel-Ø/ Aufnahme | 63 mm / MK 4 |
| bore spindle stroke | 250 mm |
| turning speed range | 71 - 1800 U/min |
| feed range | 0,13 - 0,54 mm/U |
| spindle drive | 2,2 kW |
| turn - diameter over facing slide | mm |
| power capacity | 3,06 kW |
| weight of the machine ca. | 1,4 t |
| dimensions of the machine ca. | 1,6 x 0,8 x 2,1 m |
|
coolant, cube table 450 x 400 x 400 mm, mechanical boring head- and bracket-clamping, |
