| Machineno | 1035-04654 |
| Machine type | Tool Grinder - Universal |
| Make | DECKEL |
| Type | S11 Speed |
| Build year | 2016 |
| Control | conventional |
| Storage location | 89312 Günzburg |
| Origin | Germany |
| Delivery time | immediately, subject to prior |
| Freight basis | immediately, subject to prior |
| Price | on request |
| max. grinding diameter | 238 - 620 mm |
| grinding length | 190 mm |
| workpiece length | 380 - 940 mm |
| spindle turning speed - stepless | 2 - 12000 U/min |
| current capacity | 380 kVA |
| power capacity - grinding motor | 1,1 kW |
| total power requirement | 2,2 kW |
| weight of the machine ca. | 0,6 t |
| Mechanic: very good | |
| Optical condition: very good | |
| The machine can be viewed under current. | |
| operating key and instruction |
|

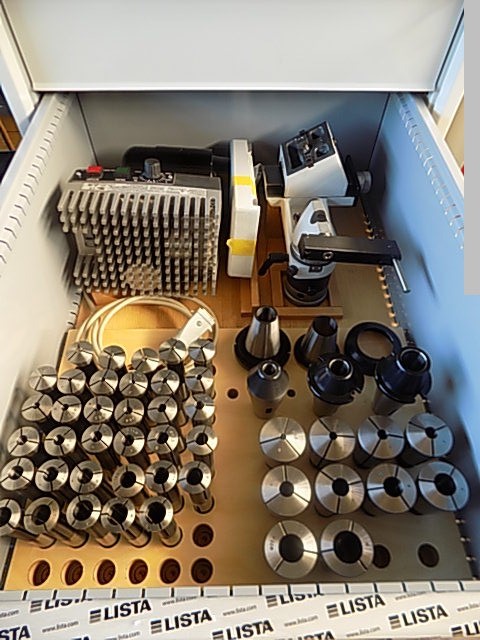

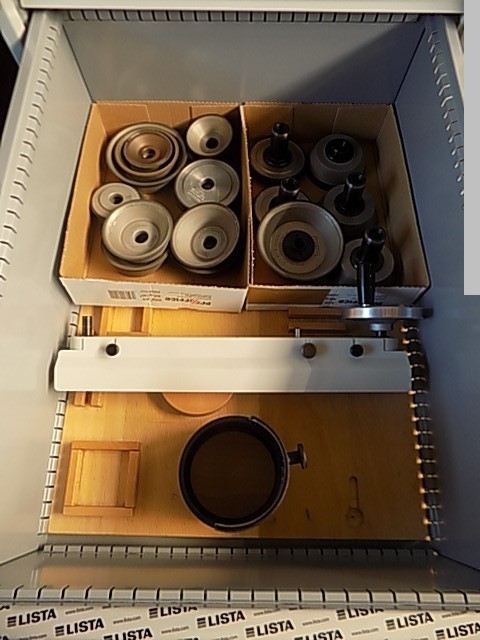

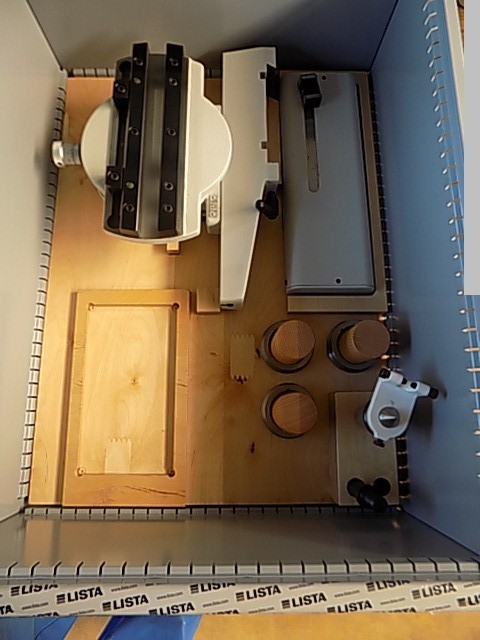

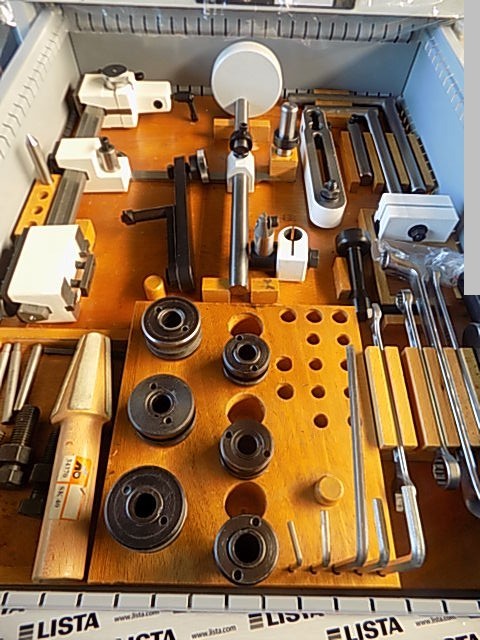

!!! We have almost all spare parts for the Deckel S 11 machines in stock !!! !!! Accessories can be varied as desired !!! We would be happy to trade in your used Deckel S 11 - contact us! 2016 S25 003004 400 V, 50/60 Hz, with CEE plug and cable Color: light gray motorized height adjustment, axial grinding spindle adjustment Equipment: * Opto-electronic measuring device with measuring electronics Image processing, PC (Original ISOG) * CCD camera and monitor * Dividing head Sk 40 with dividing disk 24 R * 1 dividing disk each 14, 16, 18 * Tightening screw M 16 * Counter bearing complete with 4 center punch points * Center point Sk 40 with driver * Twist-u. Relief grinding device with rack housing * Dust extraction completely without vacuum cleaner * LED machine light * Tooth support complete with support and sliding blades * Setting gauge * Universal setting gauge * Handwheel facility * Dressing device with 3 diamonds * 1 set of collets 1.0 - 17.5 mm by 0.5 mm rising * Pliers sleeve and extraction nut and key * 10 pieces of direct collets Sk 40 6 - 25 mm * 4 cone reducing sleeves Sk 40 x Mk 1, 2, 3, 4 * Clamping nut * 12 grinding wheel chucks * Tool cabinet with shelves * 2 protective hoods * various diamond / borazon discs * Operating instructions and key, spare parts list, circuit diagram * Set of technical grinding instructions ##### Machine is partially overhauled and has an electrical acceptance report!##### |
